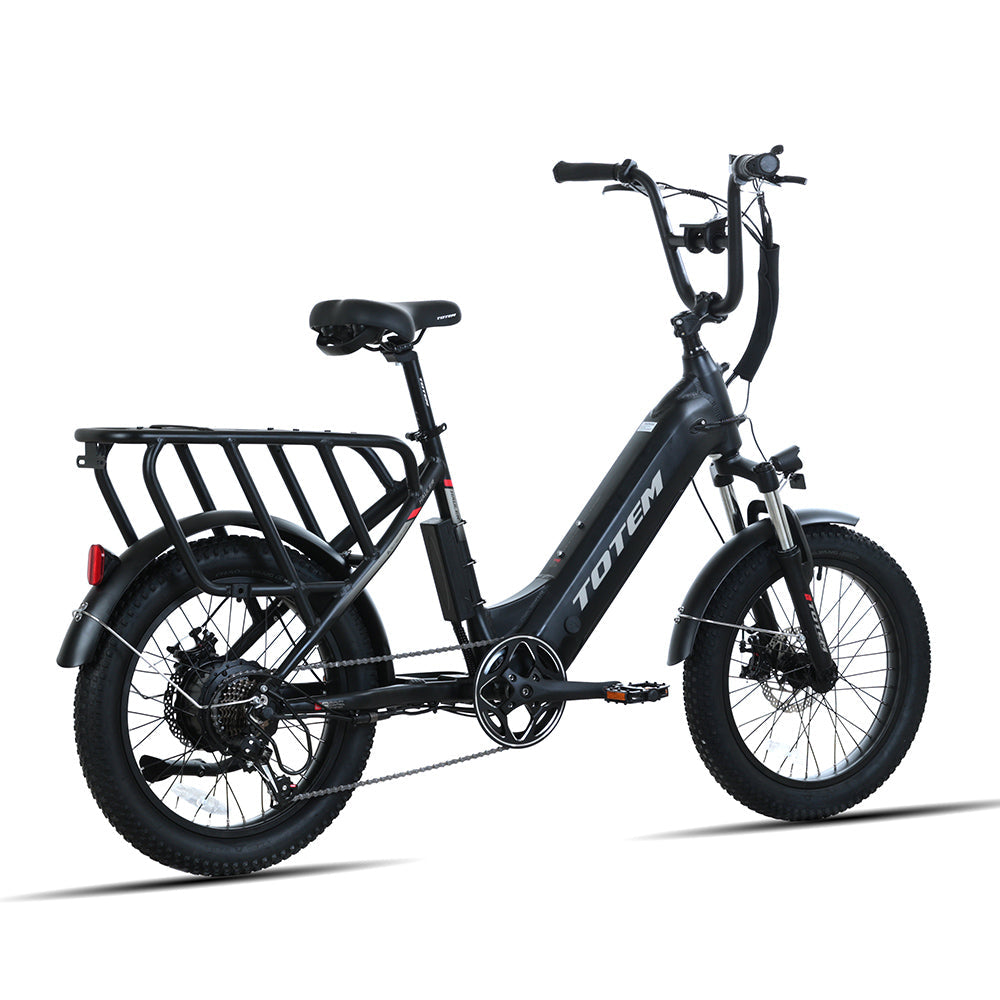

TOTEM Hauler 20" Fat Tire Electric Utility Bike 750W Geared Hub Motor 48V 15Ah Battery

DESCRIPTION

*Please Note: New York City's eBike rules are changing, we are currently unable to ship these two eBikes to NYC.

*Blending power, speed, and utility into a step-thru ergonomic frame. From city commutes to backwoods adventures, from asphalt to snow, the Hauler can carry the load.
*Recommended Height: 4'11"-6'2"

Ergonomic Comfort & Fun
The tough 6061 aluminum step-thru frame features an ergonomic design. Hop on & off with ease and ride upright and relaxed. Great for shorter riders and elderly friendly. The 3" plus-sized tires and suspension fork absorbs shocks and vibrations, handling rocks, sand, mud, and snow flawlessly. Comfortable, stable, and fun!

Power, Utility, & Agility
With 750W continuous output and 75 Nm torque, this powerhouse will boost your pedaling up to 20mph, and gives you up to 75 miles of range from the 720Wh Samsung battery. Rugged frame, 7-speed Shimano gearing, with dual disc brakes and suspension fork - Haul your gear with no fear.

Color Smart Display
Intuitive 5-level Pedal Assist: Select your power level on the fly
Half-twist Throttle: Brighten up your day with a simple twist
Color TFTDisplay: Shows Speedometer, Trip, Odometer, Battery Capacity, Pedal Assist Level.

Safety is in Our Genes

• 1, Each Totem E-bike has a level 0 safety device that puts the entire bike in a "pedal only" mode with no power. Motorized power only activates by pedaling when the rider increases the pedal assist level.
• 2, Brake Sensor - Disengages the motor when the brakes are applied, providing an intuitive cycling experience for all riders.
• 3, Overheat Protection - Disengages the motor to protect the drive system when sustained operating temperatures exceed 120 degrees Fahrenheit.
• 4, Throttle Protection - Momentarily disengages the throttle after 60 seconds of continuous use to protect the drive system from sustained high current output.
• 5, Battery Management System (BMS) + Over-current Protection – The battery’s internal chip is designed to self-regulate “sleep mode” when not in use for extended periods, prolonging usable battery life and protecting against over-current events.
• 6, Self-diagnosing Error Code messages – smart controller diagnoses drive system status and displays a numbered code to pinpoint areas for troubleshooting.

SPECIFICATIONS

General

• Brand: Totem
• Model: Hauler
• Type: Electric Fat-tire Bike
• Color: Silver / Black

Specifications

• Motor: 48V 750W Geared Hub Motor
• Riding Mode: Throttle Mode, Pedal Assist, Traditional Pedaling
• Wattage: 750 Watts
• Max Speed: 20 MPH
• Battery: Removable Lithium-ion 48V, 15Ah, Samsung 21700 cells
• Sensors: Cadence Sensor, Speed Sensor
• Pedal Assist:  5 Levels
• Charger:  48V 3 Amp Charger
• Range:  50-75 Miles Per Charge
• Frame:  20" * 18" 6061 Aluminum
• Stem:  28.6mm, Alloy
• Pedals:  9/16"
• Saddle: Wide size, Leather
• Fork:  Suspension Fork with MLO
• Bottom Bracket:  Square Taper, Sealed
• Crankset: 1/2*3/32" * 44T*170mm
• Brakes: Front & Rear Mechanical Disc Brakes
• Read Derailleur: SHIMANO 7-SPEED
• Cassette:  SHIMANO 14-28T 7-SPEED
• Shift Lever:  SHIMANO 7-SPEED
• Chain:  KMC 7-SPEED
• Rim:  Double Wall Aluminum 36h Front & Rear
• Spokes:  Black Stainless 13 Gauge Front/13 Gauge Rear
• Tubes:  CHAOYANG 20" * 3"
• Hubs:  36H Disc Front & Rear
• Tires: CHAOYANG 20" x 3", Ebike Rated
• Handlebars:  22.2mm*3.0T*640mm, H=261mm, Alloy
• Seatpost: Ajustable Alloy, ∮30.4mm* 300mm
• Headset:  Sealed Bearing Headset
• Seat Clamp:  Quick Release
• Grips:  Ergonomic Comfort
• Payload Capacity:  300 LB
• Carrier Weight Limit:  55 LB
• Bike Net Weight:  57.1 LB (Battery not included)
• Bike Weight:  66 LB (Battery included)
• Battery Weight:  8.9 LB

What's in the box

• 1 x Ebike(Arrived 85% Assembled)
• 1 x Battery
• 1 x Charger
• 1 x Instruction Manual
• 1 x Instruction Tools

MANUAL

• Hauler Ebike User Manual Download
