EMOKO / BATTERY UPGRADE

48V 35Ah Long-Range Battery

High-capacity removable housing with a 345mm mounting rail and XT60 discharge lead, designed for compatible 48V electric bicycles.

35AhCapacity
1680WhBattery energy
48VVoltage
3A charger included

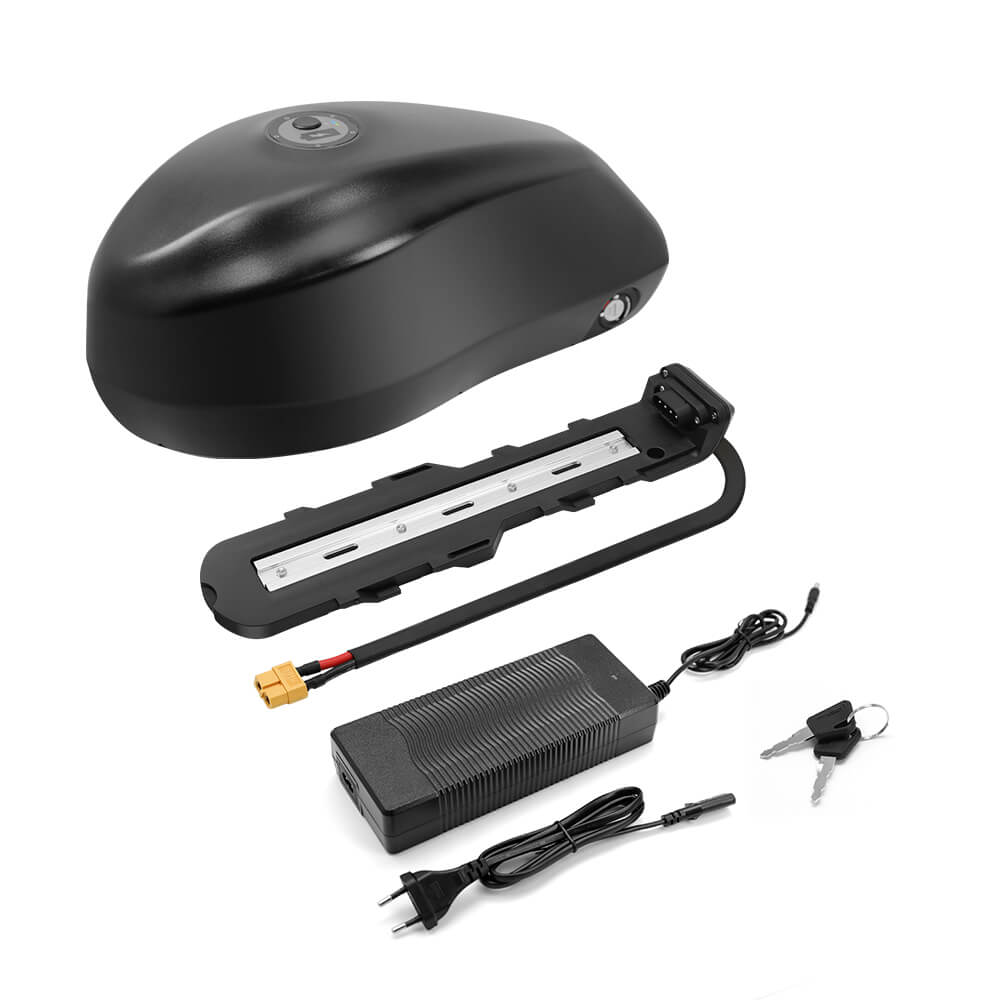

35Ah Long-Range exact product housing / included kit product photo

01 / BATTERY SPECIFICATION

Built for your 48V setup.

Choose the correct housing and electrical configuration, then measure your frame before ordering.

Nominal voltage48V
Battery energy1680 Wh
Published pedal-assist range150–200 km
Manufacturer motor-power guide250–1200W

02 / SIZE & FIT

Measure first. Fit with confidence.

Check housing dimensions, rail length and installation clearance against your frame before purchase.

35Ah Long-Range corresponding battery housing measurements / product dimension view
Battery length370 mm
Battery width110 mm
Battery height123 mm
Mounting rail length345 mm
Total installed height185 mm
Net weight8.2 kg

All dimensions refer to the 35Ah Long-Range version. Allow additional space for installation, cable routing and battery removal.

03 / PACKAGE CONTENTS

Know exactly what is included.

48V lithium battery1 unit
XT60 mounting base1 matching rail
3A charger1 included
Keys2 included

The kit includes a matching 3A charger.

04 / COMPATIBILITY

Check fit and electrical requirements.

Matching the voltage alone is not enough. Compare the exact battery size, mounting-rail profile, available frame clearance, controller current requirements and XT60 connector polarity.

48V controller compatibility
Mounting rail & bolt locations
XT60 polarity and wiring
Lock & removal clearance

For the full battery specification and supplied components, open the Specification tab above. Estimated range depends on riding conditions, assistance level and rider weight.

48V 35AH LONG-RANGE BATTERY | TECHNICAL SPECIFICATIONS

01 / BATTERY PROFILE

Battery model: 35Ah Long-Range

Nominal voltage: 48V

Battery capacity: 35Ah

Nominal energy: 1680Wh

Cell technology: Lithium-ion, 18650 Grade A (manufacturer classification)

Motor-power guide: 250–1200W

Estimated range (pedal assist): 150–200 km

Cycle life: 1000+ cycles (manufacturer rating)

02 / PHYSICAL DIMENSIONS

Battery housing length: 370 mm

Battery housing width: 110 mm

Battery housing height: 123 mm

Housing dimensions (L × W × H): 370 × 110 × 123 mm

Mounting-rail length: 345 mm

Installed height: 185 mm

Battery net weight: 8.2 kg

03 / ELECTRICAL INTERFACE

Discharge interface: XT60 connector

Mounting base: Removable slide-on rail, supplied

Charger: 3A fast charger included

Battery lock: Key-operated mounting lock

Compatible systems: 48V bicycles with matching frame, rail, wiring and controller requirements

04 / PACKAGE CONTENTS

Battery: 35Ah 35Ah Long-Range battery × 1

Mounting rail: Matching mounting base with XT60 lead × 1

Keys: 2

3A charger: Included × 1

05 / INSTALLATION CHECKS

Before purchase: Check frame clearance, mounting dimensions and battery removal space

Electrical compatibility: Verify controller discharge current and battery limits

Connector compatibility: Check XT60 polarity and cable arrangement

Charging: Use a charger approved for this battery configuration
